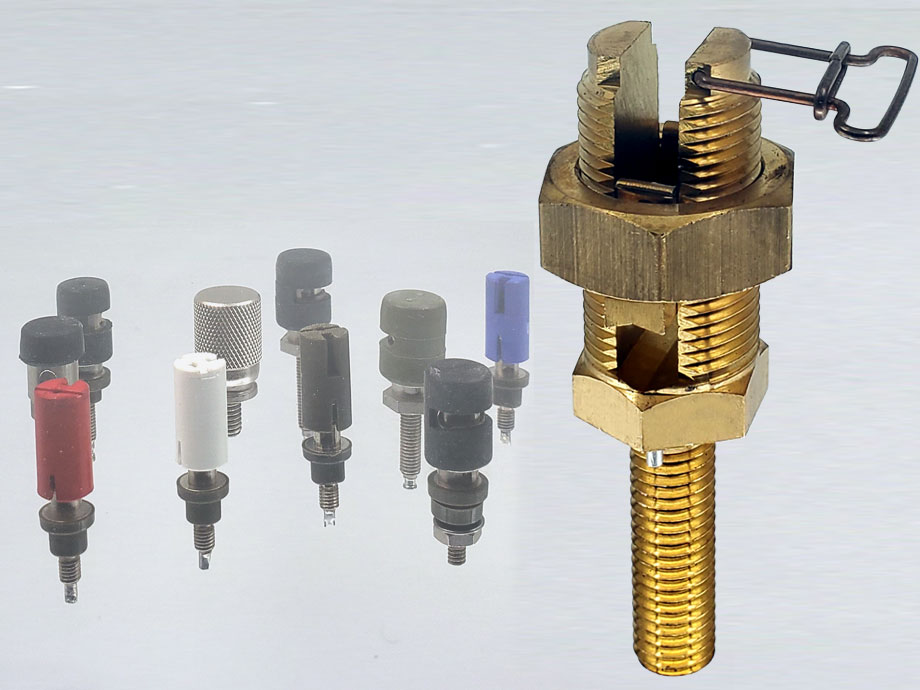

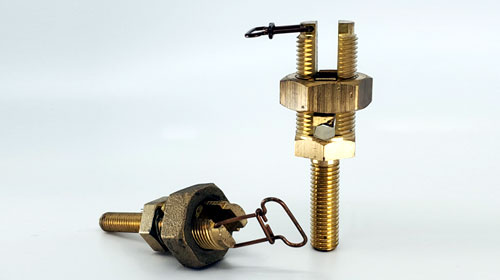

High conductivity terminal studs are designed as a ground type service connector for grounding 1 or 2 wires or cables to a threaded stud. The conductor connection may be insulated from the mounting.
Wide range of sizes. MIL-STD applicable.
Eby Company is the world's leading Binding Post manufacturer and a pioneer of binding post technology since 1924. Eby's binding posts are used in many of the worlds most demanding environments and are known for their high reliabilty and extended life cycle.
Eby's Binding Posts provide a quick solid connection allowing the highest degree of flexability and reliability for all of your connection requirements. Eby's customers include leaders in the Military electronics, aerospace and medical fields as well as all major NATO Armed Services.
Engineering, design and application support.
Fabricated to your requirements.
Custom electronics manufacturing since 1922.
Design, development, testing, and evaluation.
ISO 9002 Compliant.
MIL-I-45208 & MIL-Q-9858 Approved.
High conductivity terminal studs are designed as a ground type service connector for grounding 1 or 2 wires or cables to a threaded stud. The conductor connection may be insulated from the mounting.
Wide range of sizes. MIL-STD applicable.

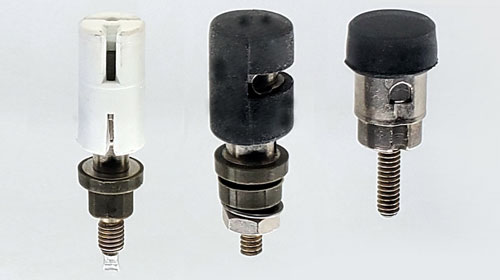

This spring type binding post conforms to the dimensional and performance requirements set forth in MIL-P-55149/9 and on MIL-P-55149/7. This assembly is available in both waterproof and non-waterproof designs. The insulated cap in conjunction with a hard metal gripper and a high force spring insures a resilient and durable electrical connection under the most adverse conditions. The cap is nylon. The body is brass nickel plated and the "O" ring (when required) is silicone rubber.

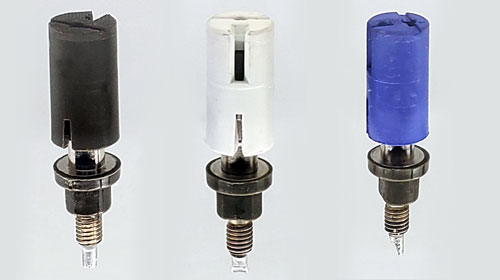

Reliable electrical contact is obtained by positive parallel clamping with no shearing, kinking or damage to wire. The milled contact surfaces extend full width of post, greatly increasing contact area. The cap is non-removable and the knurled base prevents the binding post from turning when mounted; also supplied with locking dowel.

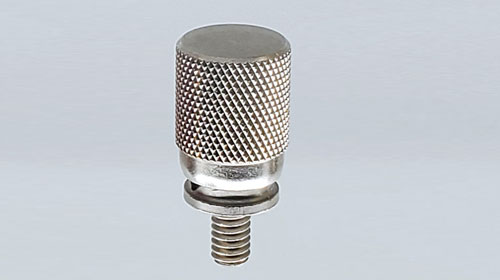

All metal parts are brass nickel plated except the dowel pin which is beryllium copper, where specified.

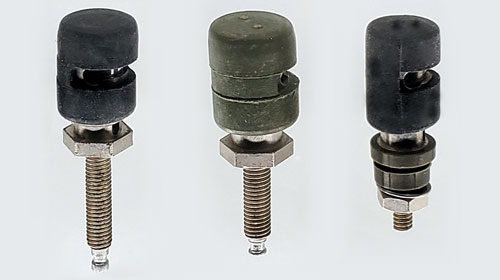

Designed for use in sealed equipment requiring external connections. Specifically developed for rugged, portable and vehicular units. Heavy spring pressure insures good contact on small diameter soft wires as well as heavy steel and copper conductors. Hardware includes nylon insulators, rubber o-rings, lock-washers, nuts and rubber caps.

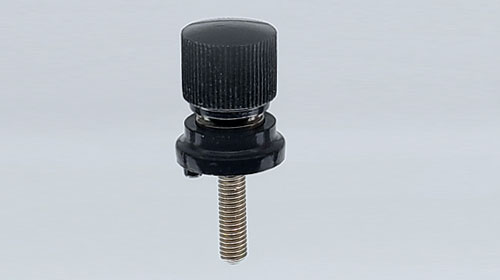

Used by manufacturers of instruments, communications apparatus, and electronic equipment as a low resistance positive electrical connection. Non-removable knobs of electrical grade molded phenolic. High quality and sturdy construction assures long life.
